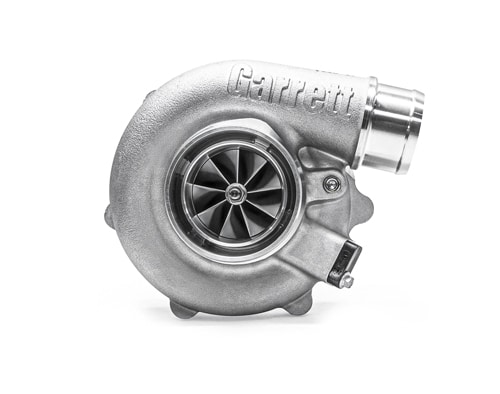

GARRETT® G30-660

Call for price

Horsepower: 350 – 660

Displacement: 1.4L – 3.0L

GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
54mm TURBOCHARGER COMPRESSOR OPTION
NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
OIL RESTRICTOR AND WATER FITTINGS INCLUDED
FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
STANDARD ROTATION G30-660 880693-5001S
REVERSE ROTATION G30-660 880694-5001S

SKU: N/A Categories: All Products, G Series, Garrett

Description

Horsepower: 350 – 660

Displacement: 1.4L – 3.0L

GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
54mm TURBOCHARGER COMPRESSOR OPTION
NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
OIL RESTRICTOR AND WATER FITTINGS INCLUDED
FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
STANDARD ROTATION G30-660 880693-5001S
REVERSE ROTATION G30-660 880694-5001S

Reference Data

G30-600 Reference Data	Compressor				Turbine
	Inducer	Exducer	Trim	A/R	Inducer	Exducer	Trim
	54mm	67mm	65	0.70	60mm	55mm	84
G30-600 Standard Rotation Supercore PN	Turbine Kit PN		A/R	Inlet	Outlet	Wastegate	Divided
880693-5001S	740902-0086		0.61	V-Band	V-Band	Free Float	N
	740902-0087		0.83	V-Band	V-band	Free Float	N
	740902-0088		1.01	V-Band	V-band	Free Float	N
	740902-0089		1.21	V-Band	V-band	Free Float	N
G30-600 Reverse Rotation Supercore PN	Turbine Kit PN		A/R	Inlet	Outlet	Wastegate	Divided
880694-5001S	740902-0096		0.61	V-Band	V-Band	Free Float	N
	740902-0097		0.83	V-Band	V-band	Free Float	N
	740902-0098		1.01	V-Band	V-band	Free Float	N
	740902-0099		1.21	V-Band	V-band	Free Float	N

Download Section

File Name	Link	View
Compressor Map	Download	View
Exhaust Flow Chart	Download	View
Product Photo	Download	View
Flange Diagram	Download	View
Speed Sensor Kit Installation Instruction	Download	View

Compressor Map & Exhaust Flow Chart

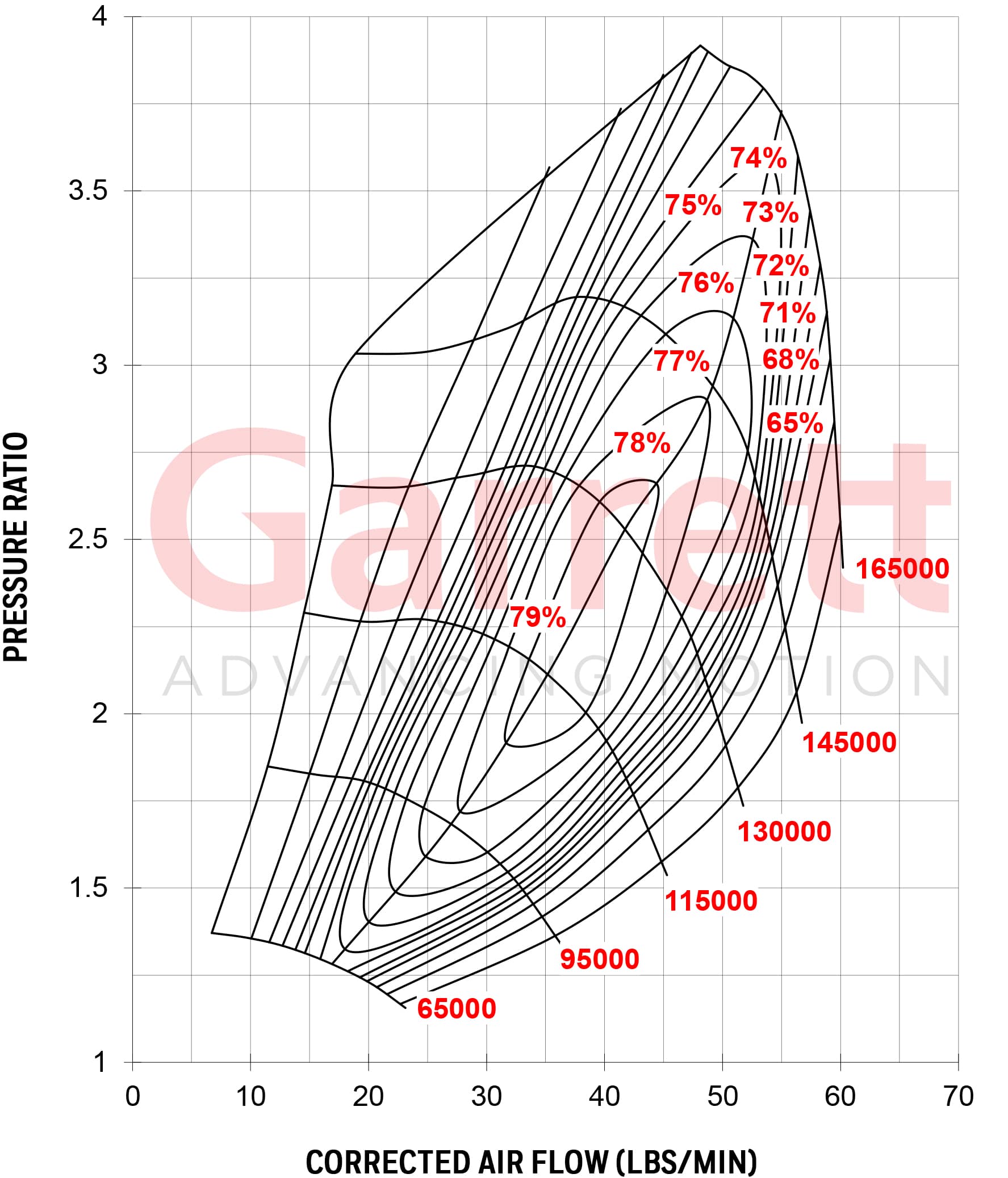

GARRETT® G30-660 COMPRESSOR MAP

GARRETT® G30-660 EXHAUST FLOW CHART
