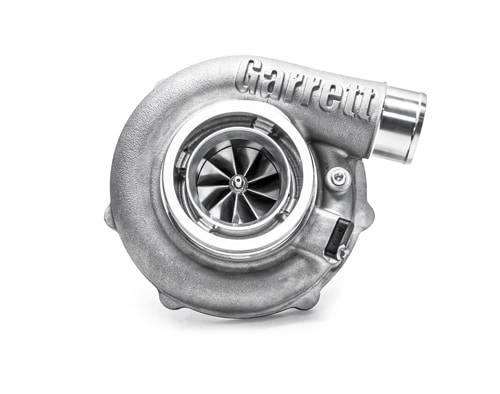

GARRETT® G30-770

Call for price

Horsepower: 475 – 770

Displacement: 2.0L – 3.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 58mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • STANDARD ROTATION SUPERCORE 880693-5002S
  • REVERSE ROTATION SUPERCORE 880694-5002S
Clear
SKU: N/A Categories: , ,

Description

Horsepower: 475 – 770

Displacement: 2.0L – 3.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 58mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • STANDARD ROTATION SUPERCORE 880693-5002S
  • REVERSE ROTATION SUPERCORE 880694-5002S

Reference Data

G30-700 Reference Data Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
58mm 71mm 65 0.72 60mm 55mm 84
G30-700 Standard Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880693-5002S 740902-0086 0.61 V-Band V-Band Free Float N
740902-0087 0.83 V-Band V-band Free Float N
740902-0088 1.01 V-Band V-band Free Float N
740902-0089 1.21 V-Band V-band Free Float N
G30-700 Reverse Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880694-5002S 740902-0096 0.61 V-Band V-Band Free Float N
740902-0097 0.83 V-Band V-band Free Float N
740902-0098 1.01 V-Band V-band Free Float N
740902-0099 1.21 V-Band V-band Free Float N

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

GARRETT® G30-770 COMPRESSOR MAP
GARRETT® G30-770 COMPRESSOR MAP
GARRETT® G30-770 EXHAUST FLOW CHART
GARRETT® G30-770 EXHAUST FLOW CHART
