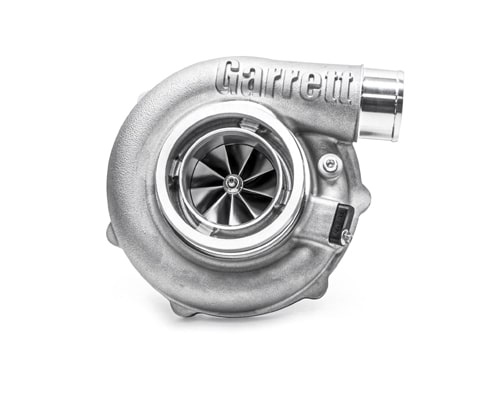

GARRETT® G35-900

Call for price

Horsepower: 550 – 900

Displacement: 2.5L – 5.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 62mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
SKU: N/A Categories: , ,

Description

Horsepower: 550 – 900

Displacement: 2.5L – 5.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 62mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS

Reference Data

35-900 Reference Data Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
62mm 76mm 65 0.72 68mm 62mm 84
G35-900 Standard Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880695-5001S 740902-0102 0.61 V-Band V-Band Free Float N
740902-0103 0.83 V-Band V-band Free Float N
740902-0104 1.01 V-Band V-band Free Float N
740902-0105 1.21 V-Band V-band Free Float N
G35-900 Reverse Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880696-5001S 740902-0112 0.61 V-Band V-Band Free Float N
740902-0113 0.83 V-Band V-band Free Float N
740902-0114 1.01 V-Band V-band Free Float N
740902-0115 1.21 V-Band V-band Free Float N

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

GARRETT® G35-900 COMPRESSOR MAP
GARRETT® G35-900 COMPRESSOR MAP
GARRETT® G35-900 EXHAUST FLOW CHART
GARRETT® G35-900 EXHAUST FLOW CHART
