GARRETT® G42-1200

Call for price

Horsepower: 475 – 1200

Displacement: 2.0L – 7.0L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HORSEPOWER
  • 73mm TURBOCHARGER COMPRESSOR OPTIONS
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO FOR INCREASED EFFICIENCY AND FLOW
  • STAINLESS STEEL TURBINE HOUSINGS
  • WATER FITTINGS INCLUDED
Categories: , ,

Description

Horsepower: 475 – 1200

Displacement: 2.0L – 7.0L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HORSEPOWER
  • 73mm TURBOCHARGER COMPRESSOR OPTIONS
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO FOR INCREASED EFFICIENCY AND FLOW
  • STAINLESS STEEL TURBINE HOUSINGS
  • WATER FITTINGS INCLUDED

Reference Data

G42-1200 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
73mm 91mm 65 .85 82mm 75mm 84
Standard Rotation Assembly Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit Includes Super Core and Turbine Kit 879779-5007S 1.01 V-Band V-Band Free Float N
879779-5008S 1.15 V-Band V-Band Free Float N
879779-5009S 1.28 V-Band V-Band Free Float N
879779-5010S 1.01 T4 V-Band Free Float Y
879779-5011S 1.15 T4 V-Band Free Float Y
879779-5012S 1.28 T4 V-Band Free Float Y

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

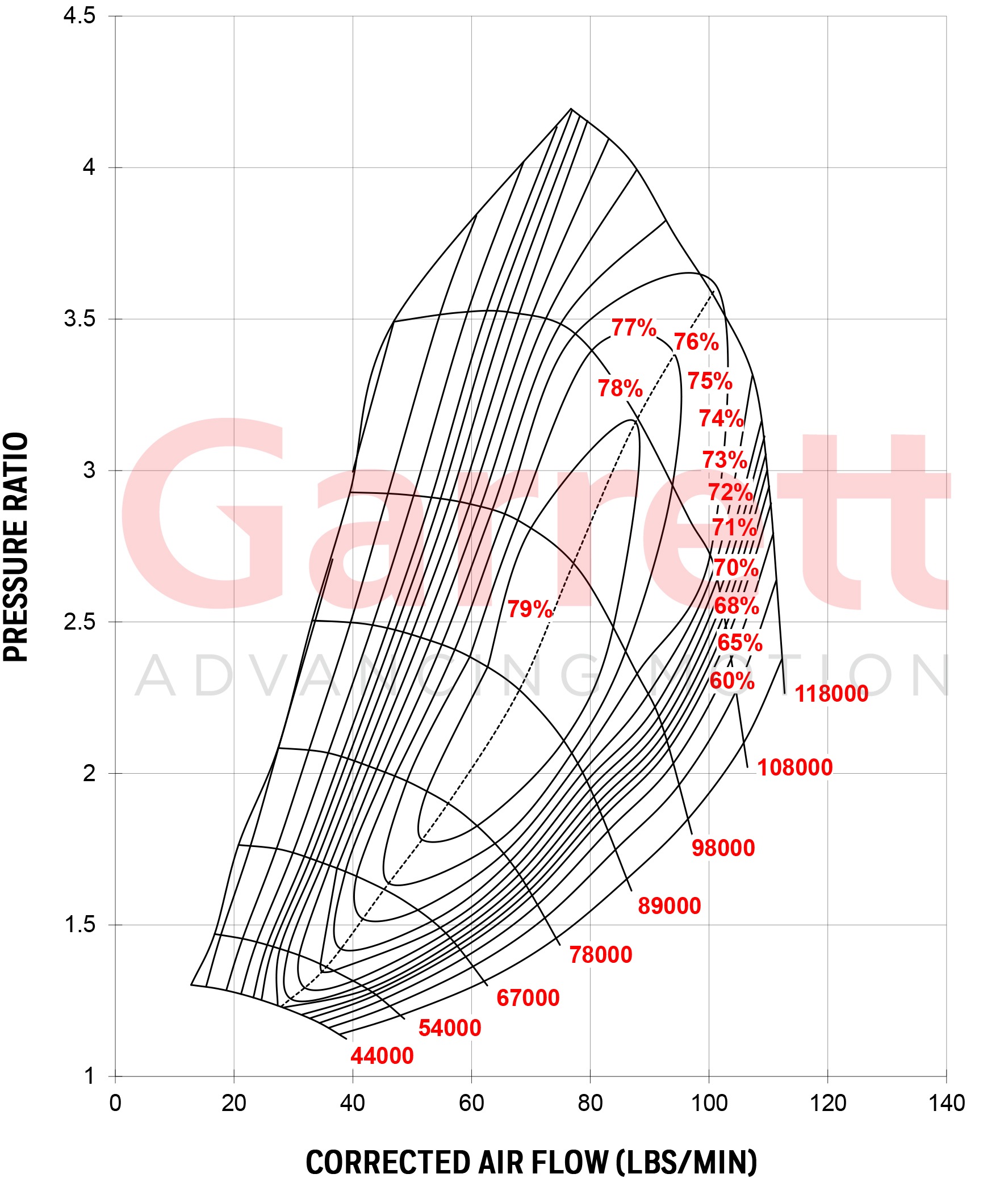

GARRETT® G42-1200 COMPRESSOR MAP
GARRETT® G42-1200 COMPRESSOR MAP
GARRETT® G42-1200 EXHAUST FLGARRETT® G42-1200 EXHAUST FLOW CHARTOW CHART

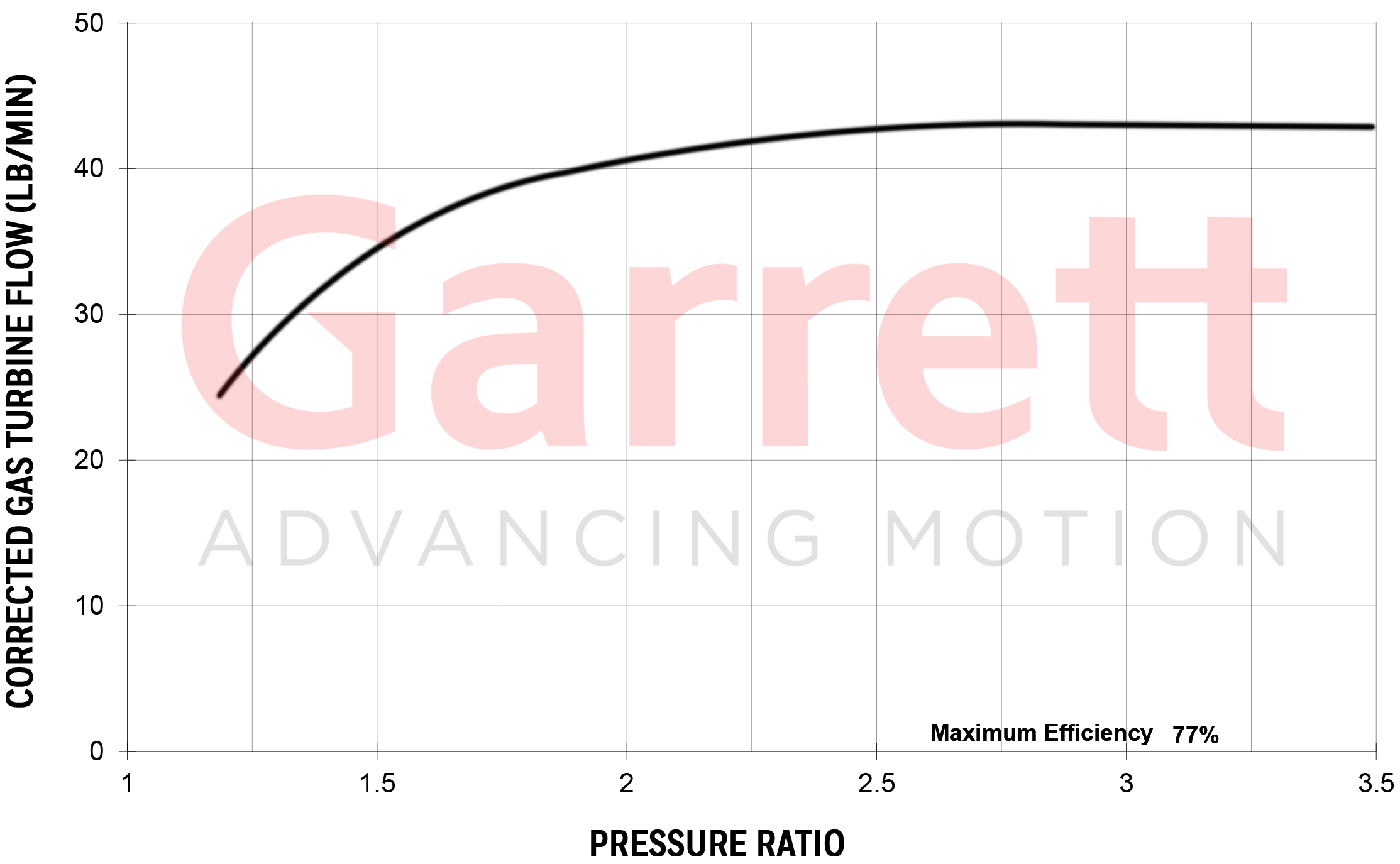

GARRETT® G42-1200 EXHAUST FLOW CHART
