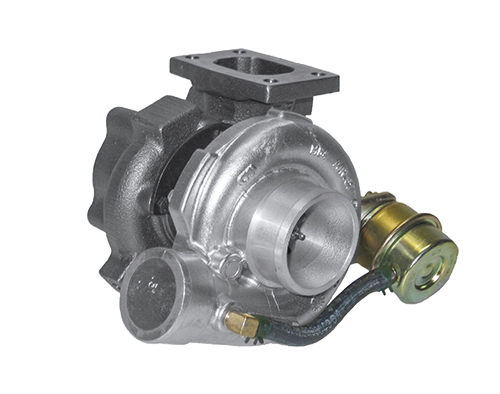

GARRETT® GT2252

Call for price

Horsepower: 150 – 260

Displacement: 1.7L – 2.5L

  • ORIGINAL GT SERIES AERODYNAMICS
  • 40mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
Categories: , ,

Description

Horsepower: 150 – 260

Displacement: 1.7L – 2.5L

  • ORIGINAL GT SERIES AERODYNAMICS
  • 40mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)

Reference Data

Turbo Reference Data Compressor Turbine
Turbo PN CHRA Inducer Exducer Trim A/R Inducer Exducer Trim A/R
452187-5006S 451298-0006 40mm 52mm 60 0.51 50mm 43mm 72 0.67

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

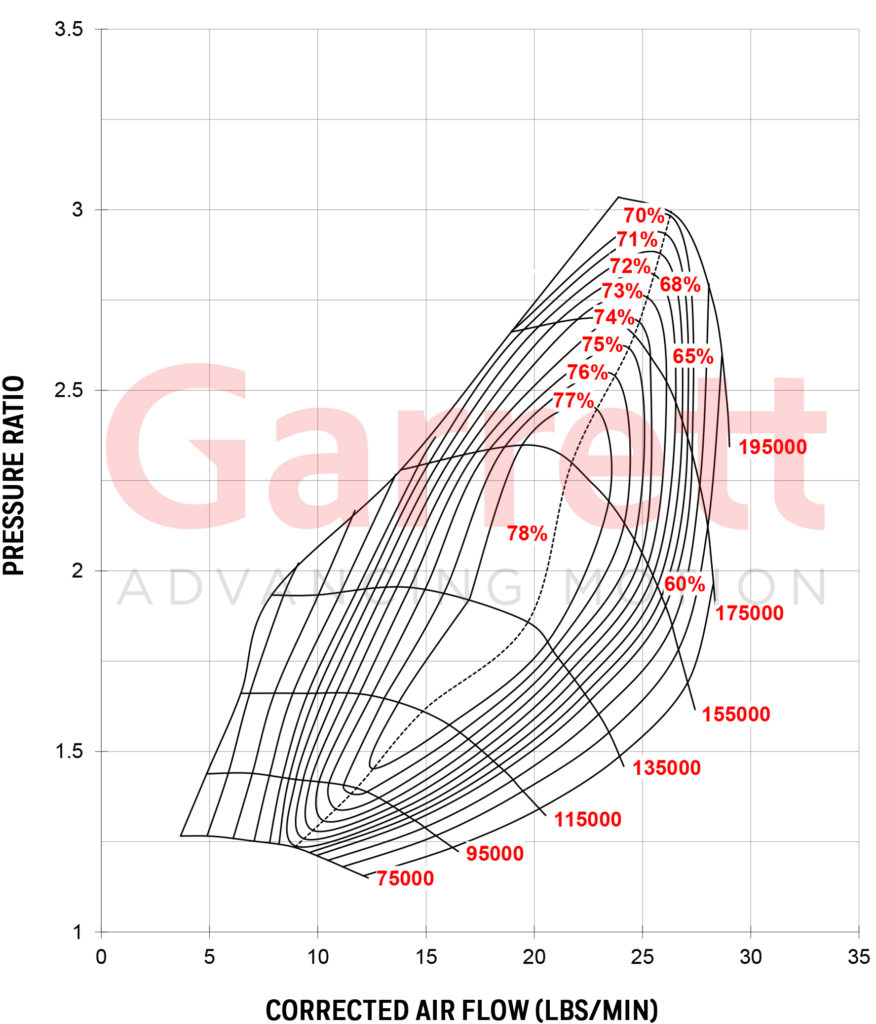

GARRETT® GT2252 COMPRESSOR MAP

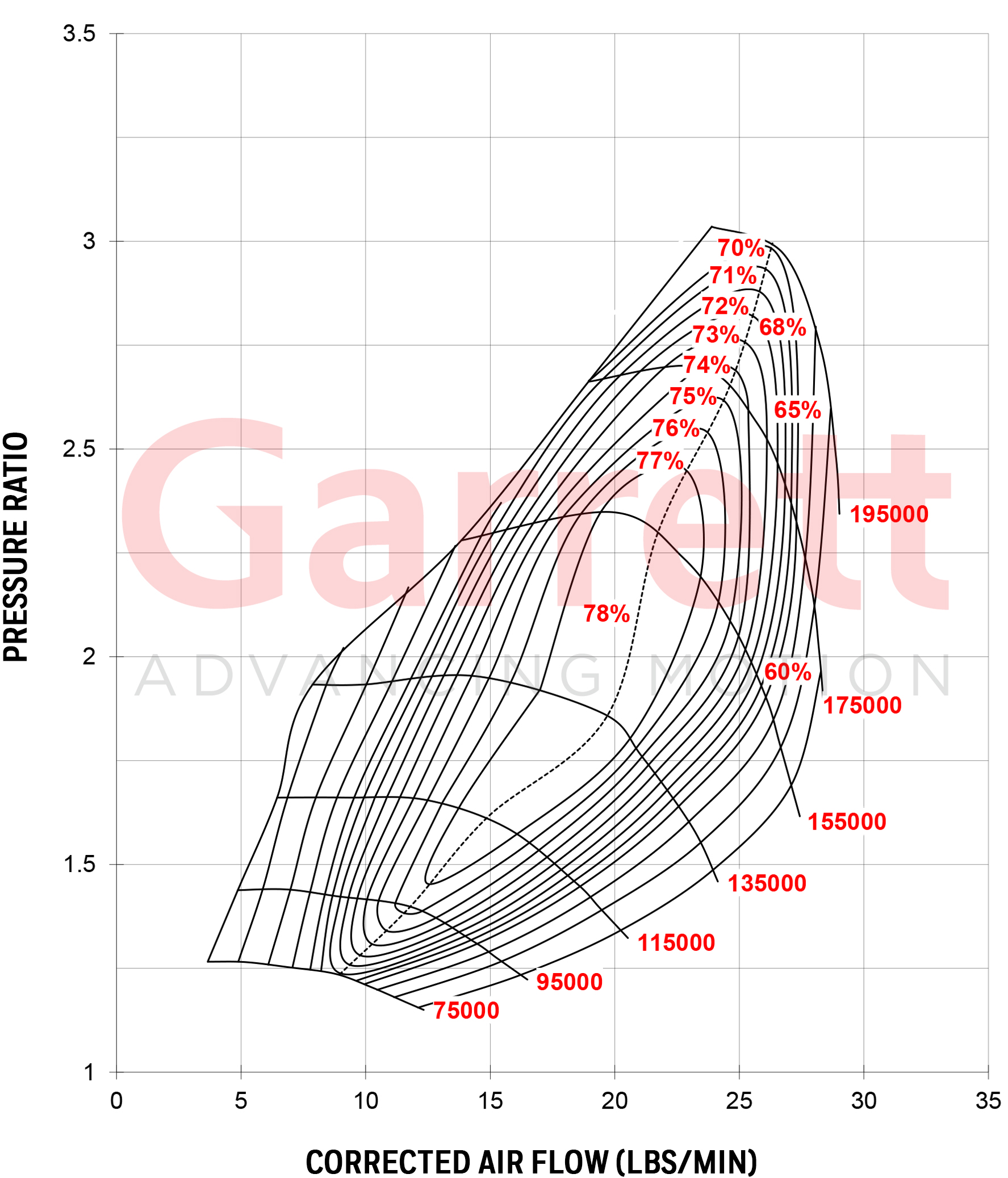

GARRETT® GT2252 COMPRESSOR MAP

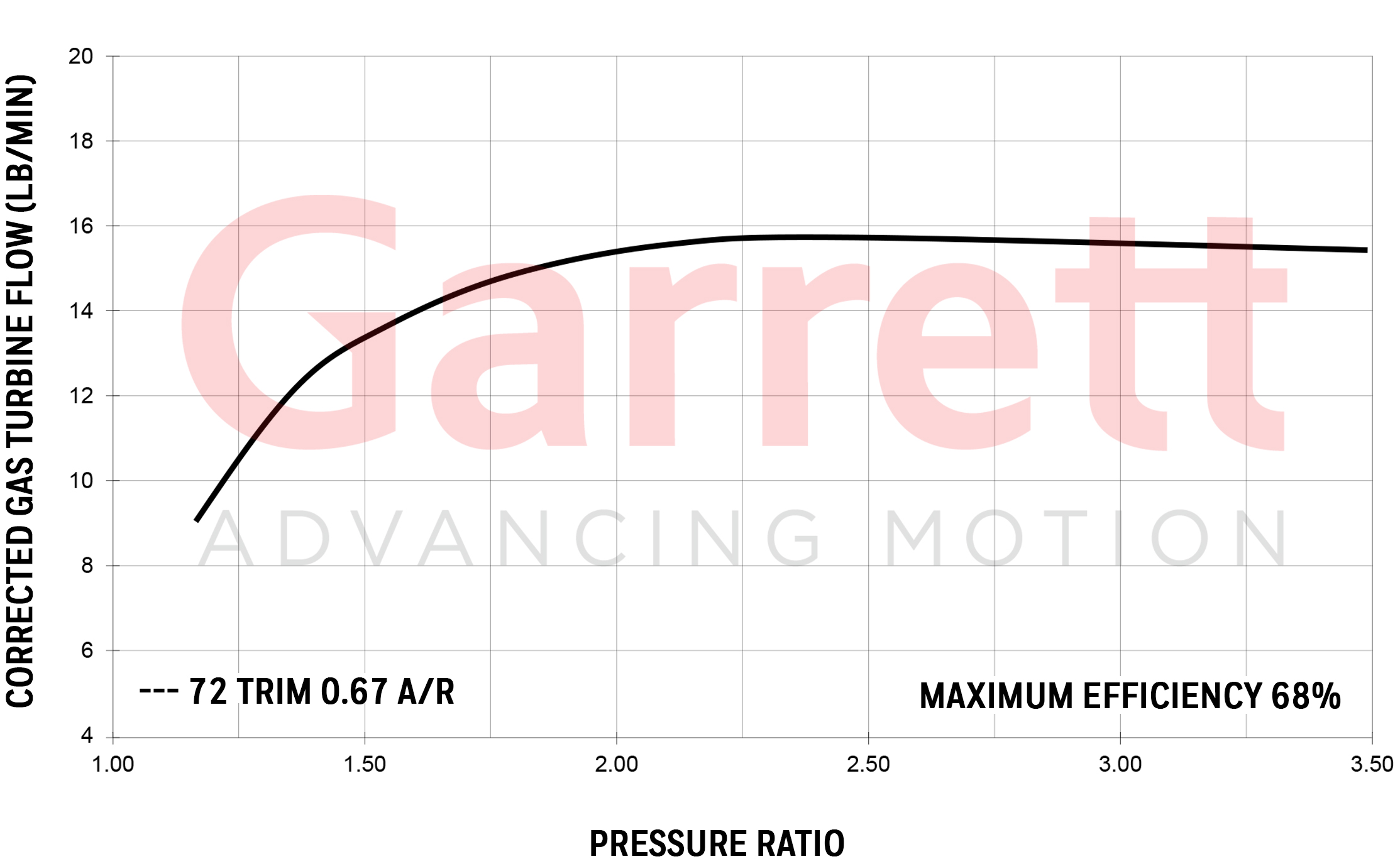

GARRETT® GT2252 EXHAUST FLOW CHART
GARRETT® GT2252 EXHAUST FLOW CHART
