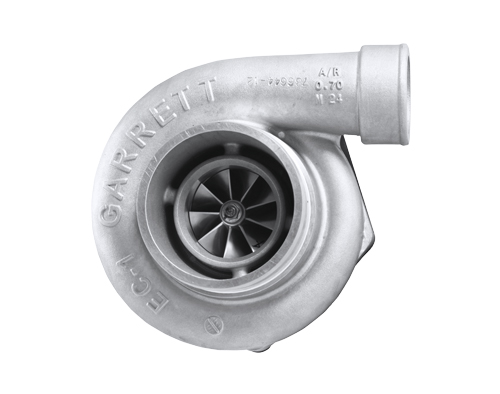

Description
Horsepower: 425 – 750
Displacement: 2.0L – 5.3L
- PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- 62mm TURBOCHARGER COMPRESSOR OPTION
- AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
- FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
- TURBINE HOUSINGS AVAILABLE IN DIVIDED CONFIGURATION
- LIGHTWEIGHT ALUMINUM BACKPLATE
Reference Data
| Super Core Reference Data |
Compressor |
Turbine |
| Super Core PN |
CHRA PN |
Inducer |
Exducer |
Trim |
A/R |
Inducer |
Exducer |
Trim |
| 841297-5002S |
715582-0007 |
62mm |
84mm |
54 |
0.70 |
71mm |
62mm |
76 |
| 841691-5002S |
757197-0011 |
62mm |
84mm |
54 |
0.70 |
71mm |
62mm |
76 |
| Notes: |
Turbine Kit PN |
A/R |
Inlet |
Outlet |
Wastegate |
Divided |
Trim |
| Super Core and Turbine Kit Sold Separately |
844669-0005 |
0.70 |
T4 |
V-Band |
Free Float |
Y |
76 |
| 844669-0006 |
1.00 |
T4 |
V-Band |
Free Float |
Y |
76 |
| 844669-0007 |
1.15 |
T4 |
V-Band |
Free Float |
Y |
76 |
*841297 Journal Bearing Option
*841691 Water Cooled CHRA
