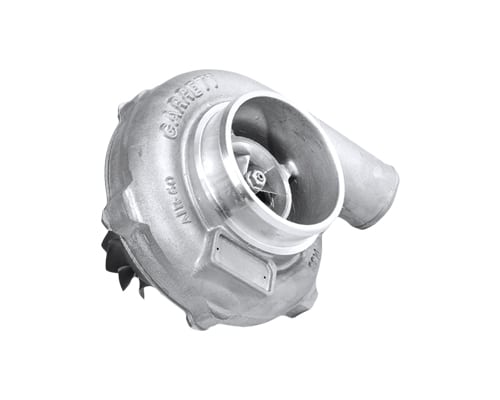

GARRETT® GTX2976R

Call for price

Horsepower: 360 – 620

Displacement: 1.8L – 3.0L

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 58mm TURBOCHARGER COMPRESSOR OPTION
  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY

Description

Horsepower: 360 – 620

Displacement: 1.8L – 3.0L

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 58mm TURBOCHARGER COMPRESSOR OPTION
  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY

Reference Data

Super Core Reference Data Compressor Turbine
Super Core PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
836041-5004S 836013-0004 58mm 76mm 58 0.60 57mm 54mm 90
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 827690-0007 0.86  T25 5-Bolt Wastegated N 90
740902-0051 0.61  V-Band V-band Free Float N 90
740902-0050 0.83  V-Band V-band Free Float N 90
740902-0049 1.01  V-Band V-band Free Float N 90

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

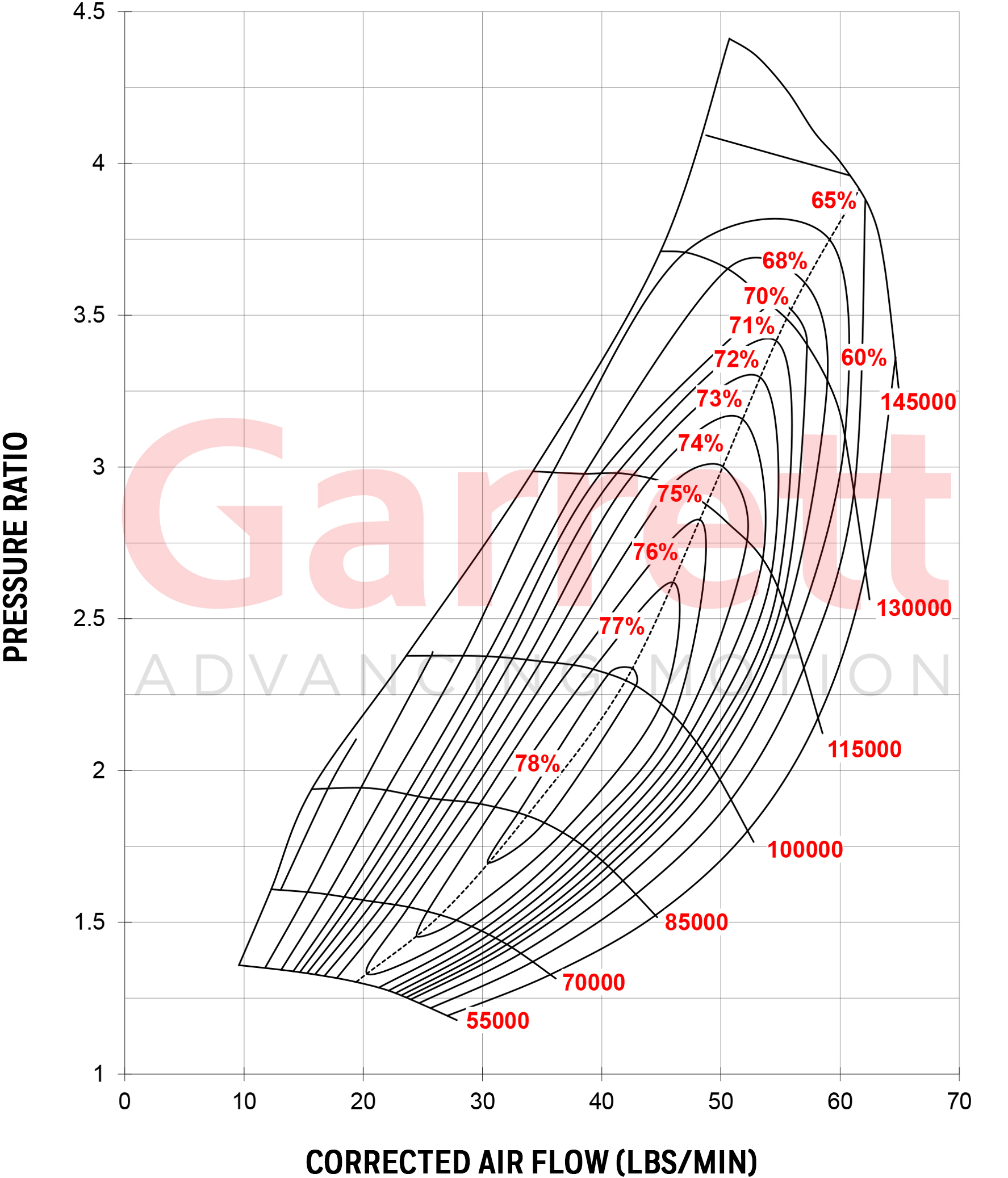

GARRETT® GTX2976R COMPRESSOR MAP
GARRETT® GTX2976R COMPRESSOR MAP

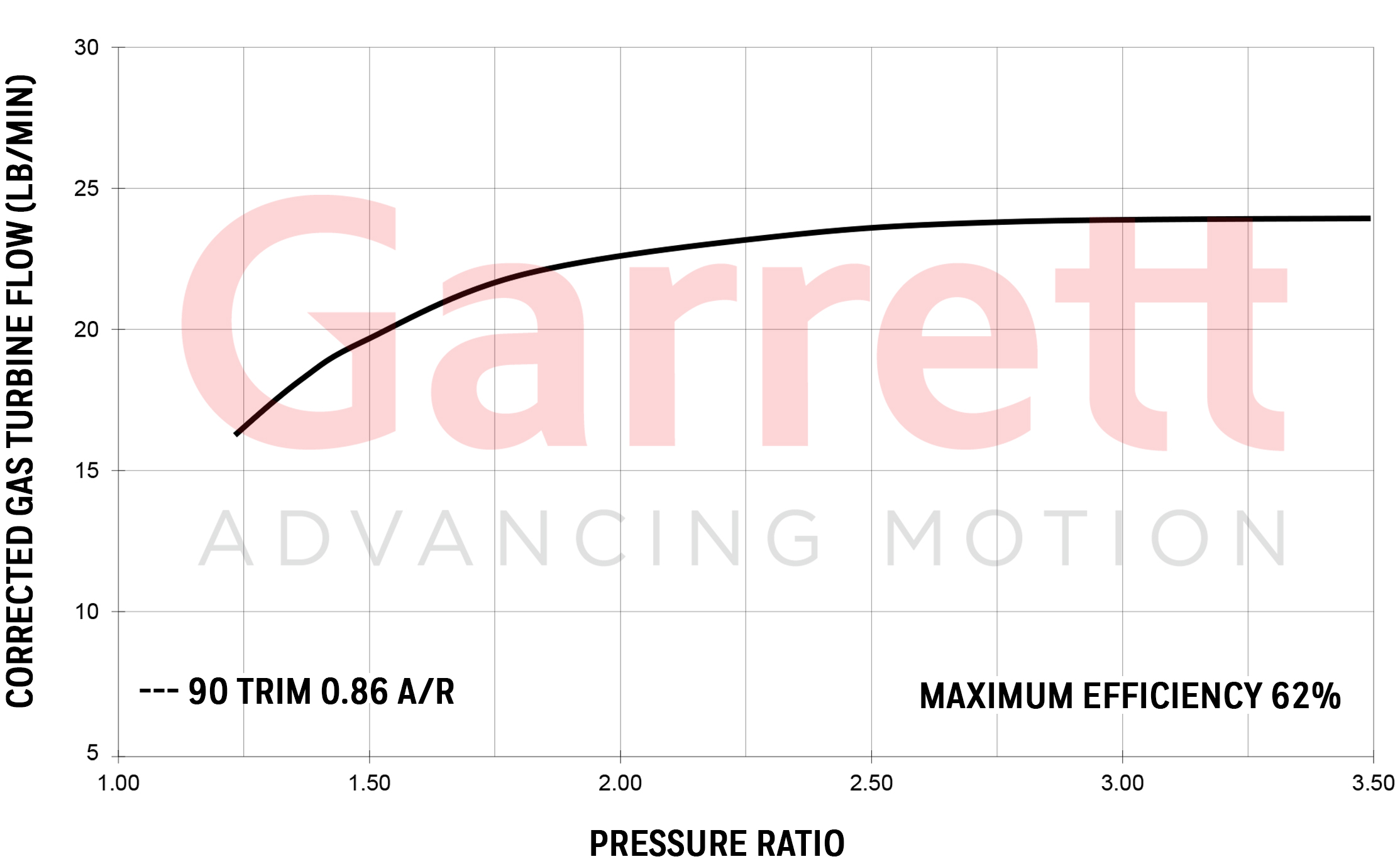

GARRETT® GTX2976R EXHAUST FLOW CHART
GARRETT® GTX2976R EXHAUST FLOW CHART
