Call for price
Horsepower: 400 – 750
Displacement: 2.0L – 4.5L
Horsepower: 400 – 750
Displacement: 2.0L – 4.5L

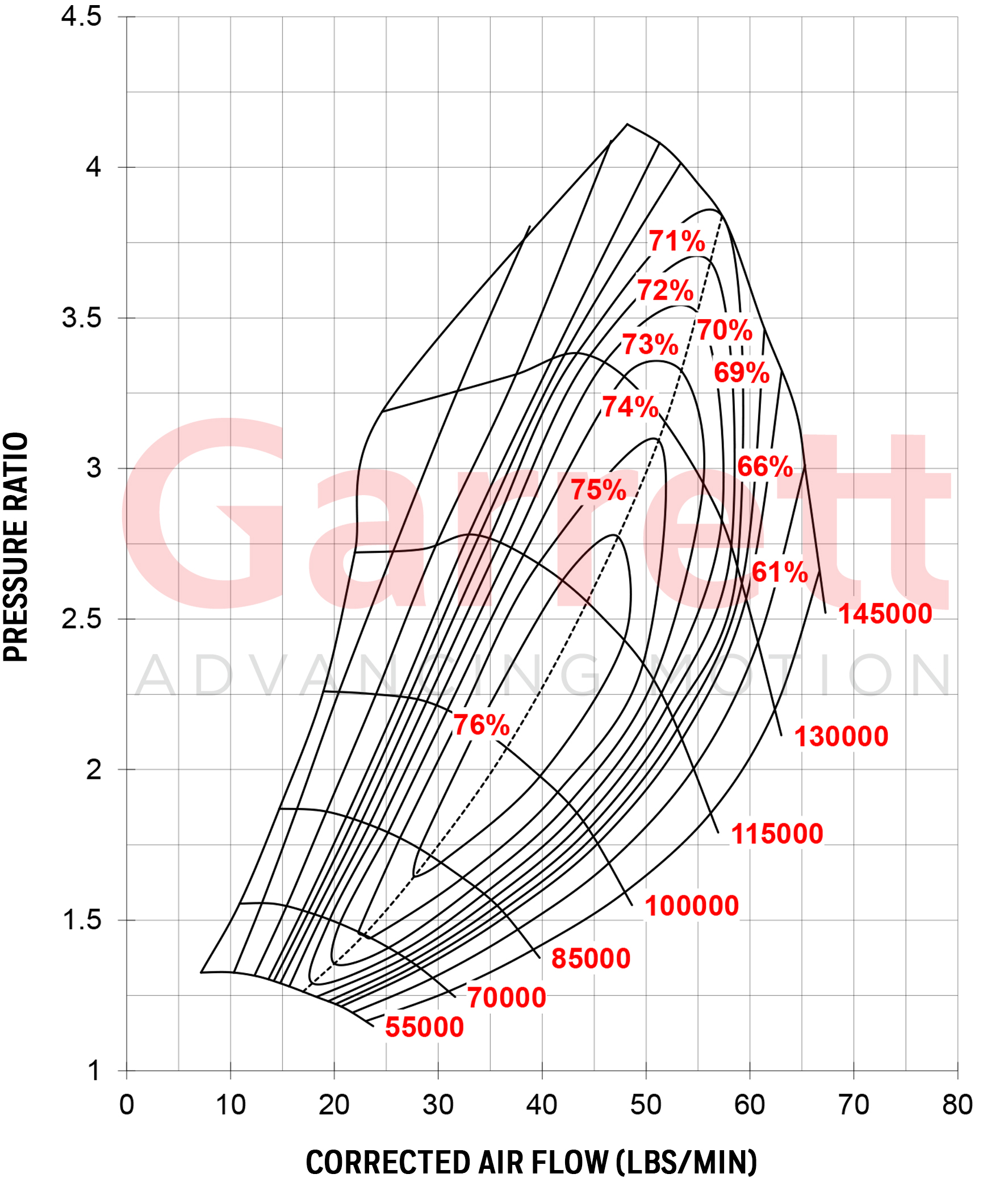

| GTX3576R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3576R Standard Rotation | 58mm | 76mm | 58 | 0.60 | 68mm | 62mm | 84 | |
| GTX3576R Reverse Rotation | 58mm | 76mm | 58 | 0.60 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | 856801-5048S | 851154-5003S | 740902-0012 | 0.63 | T3 | V-Band | Free Float | N |
| 856801-5047S | 851154-5003S | 740902-0011 | 0.82 | T3 | V-Band | Free Float | N | |
| 856801-5046S | 851154-5003S | 740902-0010 | 1.06 | T3 | V-Band | Free Float | N | |
| 856801-5051S | 851154-5003S | 740902-0018 | 0.63 | T4 | V-Band | Free Float | N | |
| 856801-5050S | 851154-5003S | 740902-0017 | 0.82 | T4 | V-Band | Free Float | N | |
| 856801-5049S | 851154-5003S | 740902-0016 | 1.06 | T4 | V-Band | Free Float | N | |
| 856801-5060S | 851154-5003S | 740902-0033 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856801-5059S | 851154-5003S | 740902-0032 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856801-5058S | 851154-5003S | 740902-0031 | 1.01 | V-Band | V-Band | Free Float | N | |
| Reverse Rotation Configuration | 856803-5001S | 844626-5003S | 740902-0056 | 0.61 | V-Band | V-Band | Free Float | N |
| 856803-5002S | 844626-5003S | 740902-0057 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856803-5003S | 844626-5003S | 740902-0058 | 1.01 | V-Band | V-Band | Free Float | N | |
