GARRETT® GTX3584RS

Call for price

Horsepower: 550 – 1000

Displacement: 2.0L – 5.5L

  • GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • ”RS” DESIGNED, HIGH HORSEPOWER TURBINE WHEEL
  • 67mm TURBOCHARGER COMPRESSOR OPTION
  • COMPACT DESIGN FOR TIGHT INSTALLATIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT.
  • SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
  • COMP OUTLET AVAILABLE IN V-BAND & HOSE CONNECTION

Description

Horsepower: 550 – 1000

Displacement: 2.0L – 5.5L

  • GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • ”RS” DESIGNED, HIGH HORSEPOWER TURBINE WHEEL
  • 67mm TURBOCHARGER COMPRESSOR OPTION
  • COMPACT DESIGN FOR TIGHT INSTALLATIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT.
  • SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
  • COMP OUTLET AVAILABLE IN V-BAND & HOSE CONNECTION

Reference Data

GTX3584RS Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX3584RS Hose Bead Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
GTX3584RS V-Band Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
Notes: Assembly Kit PN Super Core PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Hose Bead Comp Outlet 856804-5001S 846098-5001S 740902-0067 0.83 V-Band V-Band Free Float N
856804-5002S 846098-5001S 740902-0066 1.01 V-Band V-Band Free Float N
856804-5003S 846098-5001S 740902-0052 1.21 V-Band V-Band Free Float N
V-Band Comp Outlet 856804-5004S 846098-5002S 740902-0067 0.83 V-Band V-Band Free Float N
856804-5005S 846098-5002S 740902-0066 1.01 V-Band V-Band Free Float N
856804-5006S 846098-5002S 740902-0052 1.21 V-Band V-Band Free Float N

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

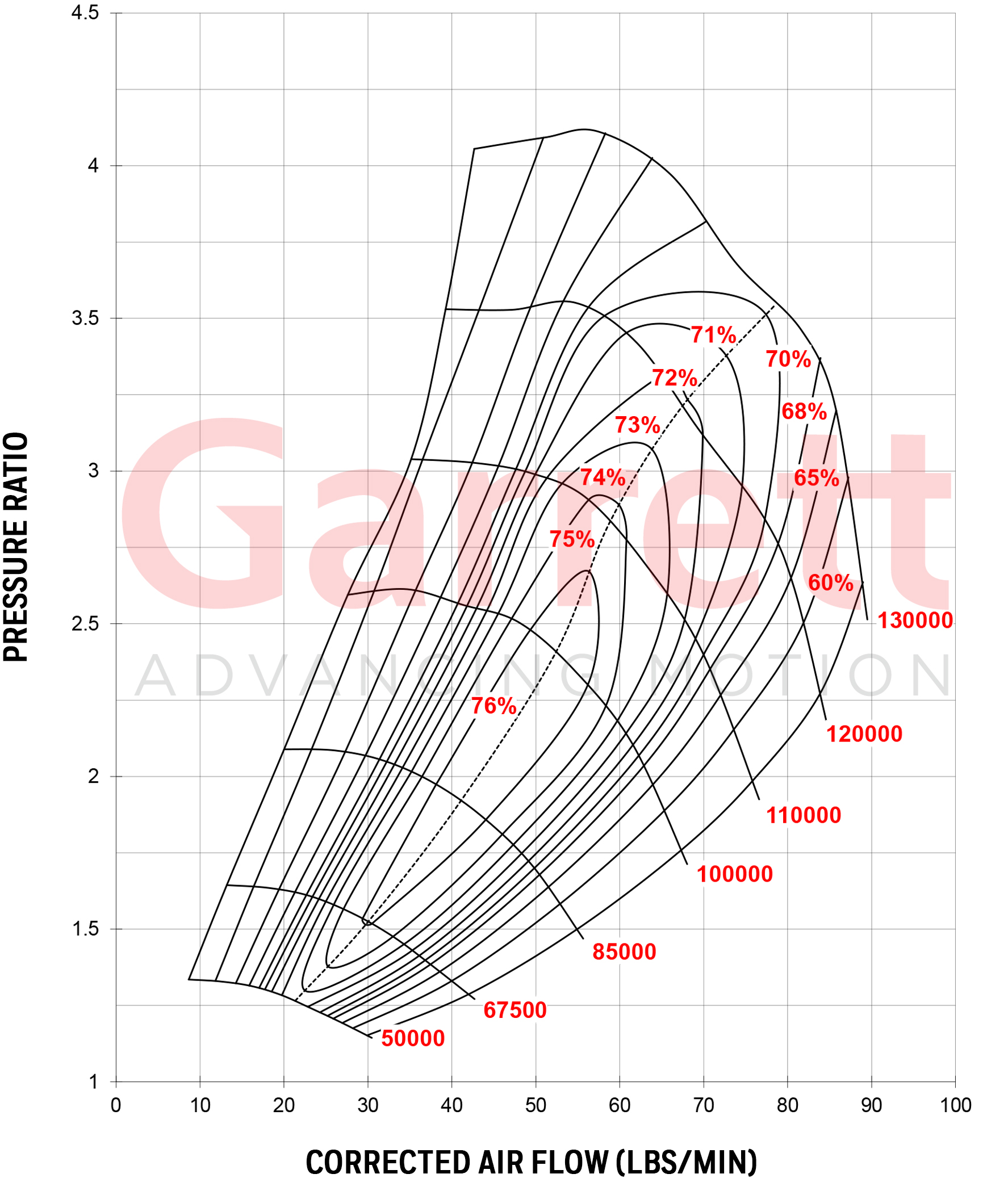

GARRETT® GTX3584RS COMPRESSOR MAP
GARRETT® GTX3584RS COMPRESSOR MAP
GARRETT® GTX3584RS EXHAUST FLOW CHART
GARRETT® GTX3584RS EXHAUST FLOW CHART
