GARRETT® GTX4294R

Call for price

Horsepower: 475 – 950

Displacement: 2.0L – 7.0L

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 70mm TURBOCHARGER COMPRESSOR OPTION
  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY
  • AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
  • V-BAND COMPRESSOR OUTLET CONFIGURATION

Description

Horsepower: 475 – 950

Displacement: 2.0L – 7.0L

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 70mm TURBOCHARGER COMPRESSOR OPTION
  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY
  • AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
  • V-BAND COMPRESSOR OUTLET CONFIGURATION

Reference Data

Super Core Reference Data Compressor Turbine
Super Core PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
800269-5001S 451888-0043 70mm 94mm 56 0.60 82mm 75mm 84
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 757707-0001 1.01 T4 V-Band Free Float Y 84
757707-0002 1.15 T4 V-Band Free Float Y 84

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

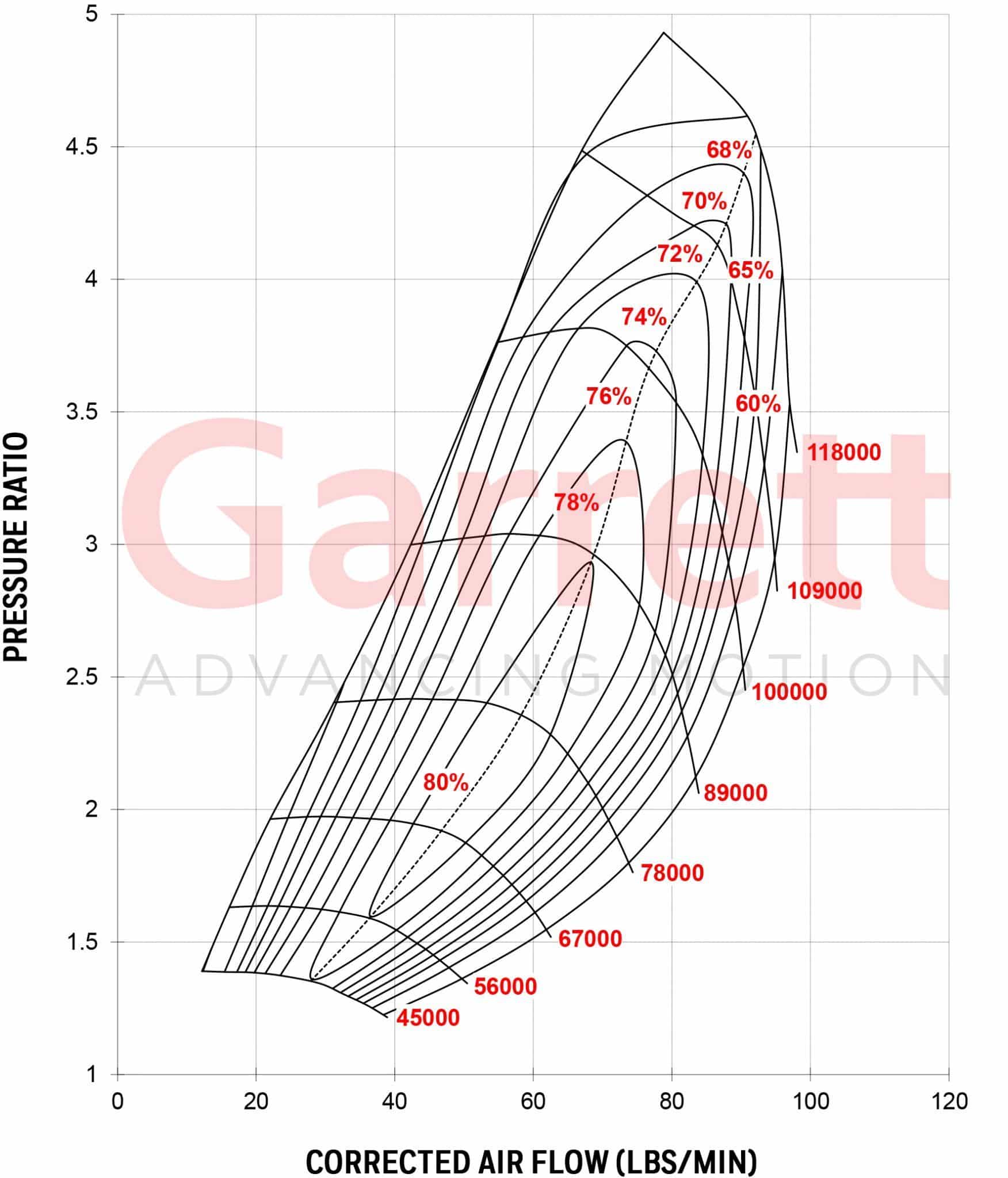

GARRETT® GTX4294R COMPRESSOR MAP
GARRETT® GTX4294R COMPRESSOR MAP
GARRETT® GTX4294R EXHAUST FLOW CHART
GARRETT® GTX4294R EXHAUST FLOW CHART
