GARRETT® GTX4709R GEN II

Call for price

Horsepower: 825 – 1625

Displacement: 2.0L – 10.0L

  • GEN II COMPRESSOR WHEEL AERODYNAMICS
  • 15% INCREASED FLOW
  • 76mm AND 80mm TURBOCHARGER COMPRESSOR OPTIONS
  • LARGER .88 A/R COMPRESSOR HOUSING VOLUTE
  • GTX4709R FEATURES A 109mm COMP EXDUCER ( + 1mm) AND HAS 39% LOWER INERTIA*
  • SUPER CORE AND TURBINE HOUSING SOLD SEPARATELY
  • COMPATIBLE WITH GT AND GTX TURBINE HOUSINGS
Categories: , ,

Description

Horsepower: 825 – 1625

Displacement: 2.0L – 10.0L

  • GEN II COMPRESSOR WHEEL AERODYNAMICS
  • 15% INCREASED FLOW
  • 76mm AND 80mm TURBOCHARGER COMPRESSOR OPTIONS
  • LARGER .88 A/R COMPRESSOR HOUSING VOLUTE
  • GTX4709R FEATURES A 109mm COMP EXDUCER ( + 1mm) AND HAS 39% LOWER INERTIA*
  • SUPER CORE AND TURBINE HOUSING SOLD SEPARATELY
  • COMPATIBLE WITH GT AND GTX TURBINE HOUSINGS

Reference Data

GTX4720R GEN II | Reference Data Compressor Turbine
Super Core PN Replaces Inducer Exducer Trim A/R Inducer Exducer Trim
851285-5011S NEW 76mm 109mm 49 0.88 93mm 84mm 82
851285-5012S NEW 80mm 109mm 54 0.88 93mm 84mm 82
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 761208-0009 0.96 T6 V-Band Free Float N 82
761208-0010 1.08 T6 V-Band Free Float N 82
761208-0011 1.23 T6 V-Band Free Float N 82
761208-0012 1.39 T6 V-Band Free Float N 82

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

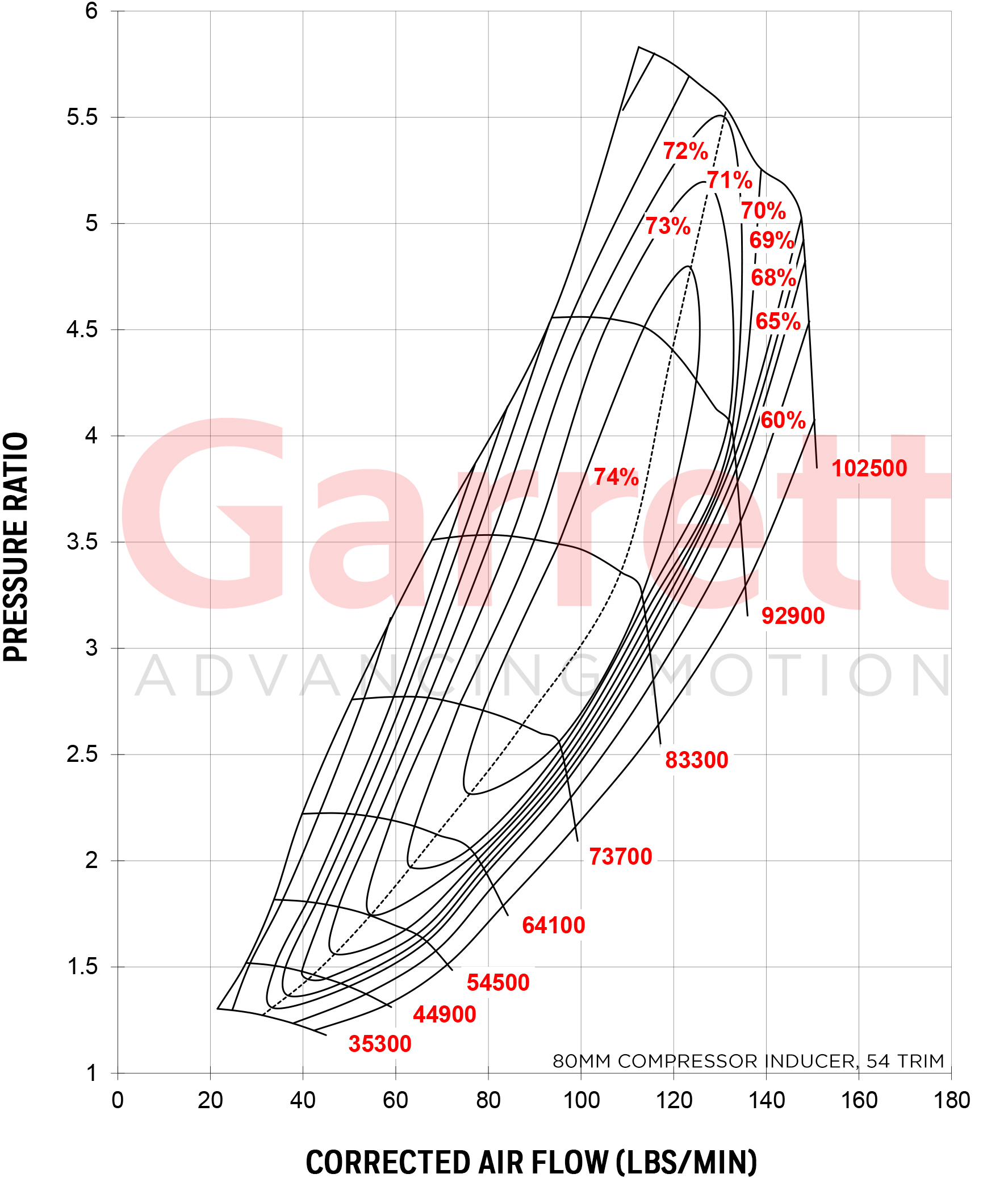

GARRETT® GTX4709R GEN II COMPRESSOR MAP
