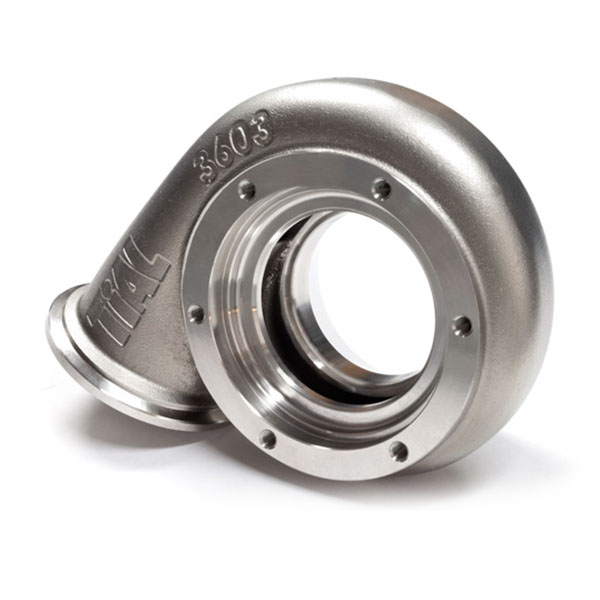

TiAL GT30 Stainless Turbine Housing

Call for price

Lightweight stainless steel turbine housings for the GT/X 30 series turbochargers. Compatible with the 60mm 84 trim turbine wheel. Note: these housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA.

Clear

Description

Lightweight stainless steel turbine housings for the GT/X 30 series turbochargers. Compatible with the 60mm 84 trim turbine wheel. Note: these housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA.



  • Typically lighter weight than a corresponding iron housing of the same A/R
  • Investment cast stainless steel for a beautiful, smooth interior and exterior
  • Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
  • Three A/R options
  • Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
  • Better heat retention than cast iron
  • Inconel bolts provided for vibration and stretching resistance in extreme applications
  • Locking tabs included for high vibration applications
  • Pivoting of the turbo 360* possible
  • Note: these housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA

Additional information

Available A/R

.63, .82, 1.06

Configuration

GT30 Housing Option
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.125″ OD, Outlet Flange: 3.00″ OD
Flanges/Clamps Included? No
Housing Weight 5.8lbs (largest A/R)
Turbine Wheel 60mm 84 Trim

What's In The Box

  • Turbine Housing
  • Three Moon Tabs
  • Six Inconel Bolts
  • Three Locking Tabs

TiAL V-Band Clamp and Flange System

TiAL V-Band flanges are manufactured in house
GTVFL3.0 – Inlet Flange
VC300 – Inlet Clamp
VBF300M – Outlet Flange
VC355 – Outlet Clamp
